Details:

All RF Explorer models have some power ranges for input signal beyond which can be damaged. For most models, the limit is on +5dBm, some others are ok up to +10dBm but only WSUB3G (as well as the RF SMA connector on the right side in a 3G Combo) is protected up to +30dBm.

Technical Data:

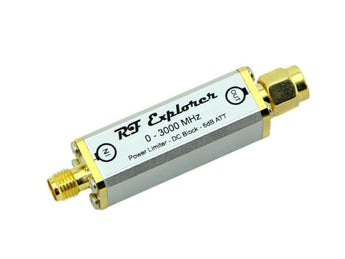

• Small and low weight custom aluminum case
• 3-in-1 device with Power Limiter, DC Block and Attenuator
• Easy to connect and disconnect when required
• Wide broadband frequency application
• Directional 1 Watt rating
• Suitable for all RF Explorer models, not required for WSUB3G.
• Frequency range: DC ~ 3.0 GHz
• DC block: +16V DC
• Input Power rating: 1 Watt (+30dBm)
• Output power max: +4 dBm.
• Attenuation: 6 dB
• Impedance (Nominal): 50Ω
• V.S.W.R (Max): 1.25 : 1
• Connector type: SMA male – female
• Connector: Brass / Gold plating
• Body: Aluminum
