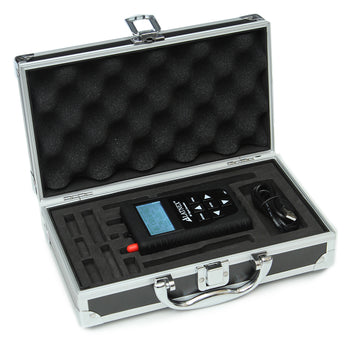

RF Signal Generator RF-SG6 with Advanced Aluminium Case, Black Protection Boot & USB Cable (24MHz - 6000MHz)

$ 299.00 $ 235.00 Save 21%

The LATNEX® RF Signal Generator RF-SG6 is a powerful, wideband fully programmable RF signal generator.

The RF Signal Generator generates CW and Sweep signals by selecting embedded menu options. When connected to a PC, it can be fully programmed with the RF Explorer for Windows software tool.

Furthermore, the unit can work as a powerful Tracking Generator when used with SPA-6G
Spectrum Analyzer connected to the same PC, offering full Scalar Network Analyzer (SNA) capabilities. The SNA feature allows full characterization of filters, amplifiers, and any 2-port RF device.

Features

    • Pocket size and light weight

    • Solid aluminum metal case

    • Lifetime free firmware upgrades available, open to community requested features

    • High capacity Lipo for 16hs+ of continuous run, rechargeable by USB

    • RF Explorer for Windows PC client Open Source

    • Can be extended with internal Expansion Modules for additional future band support and functionality

    • Wide band support

      • Frequency range supported: 24 to 6000 MHz

      • Frequency step/resolution: 1KHz

Frequency stability: 0.5ppm

    • Temperature compensated (0-45C)

    • Backlight for great indoor visibility

    • Standard SMA 50 ohms connector

    • Programmable Amplitude with included internal programmable attenuator:

      • -40dBm to -30dBm in 3dB steps

      • -10dBm to 0dBm in 3dB steps

Amplitude accuracy: +-0.5dB (normalized) or +-3dB (absolute)

  • Switch measurement point speed < 10ms

  • Graphics LCD 128x64 pixels, great visibility outdoors

  • PC Windows client supports Windows XP/Vista/Win7 both 32 and 64bits

  • Functional modes:

    • CW signal generator at any frequency in the range

    • Tracking generator function
