Battery Indicator BI-1224V003
$ 33.90
12V 24V LED battery indicator for DC powered equipment, such as fork lifts, golf carts, floor care equipment, or any other battery powered equipment.

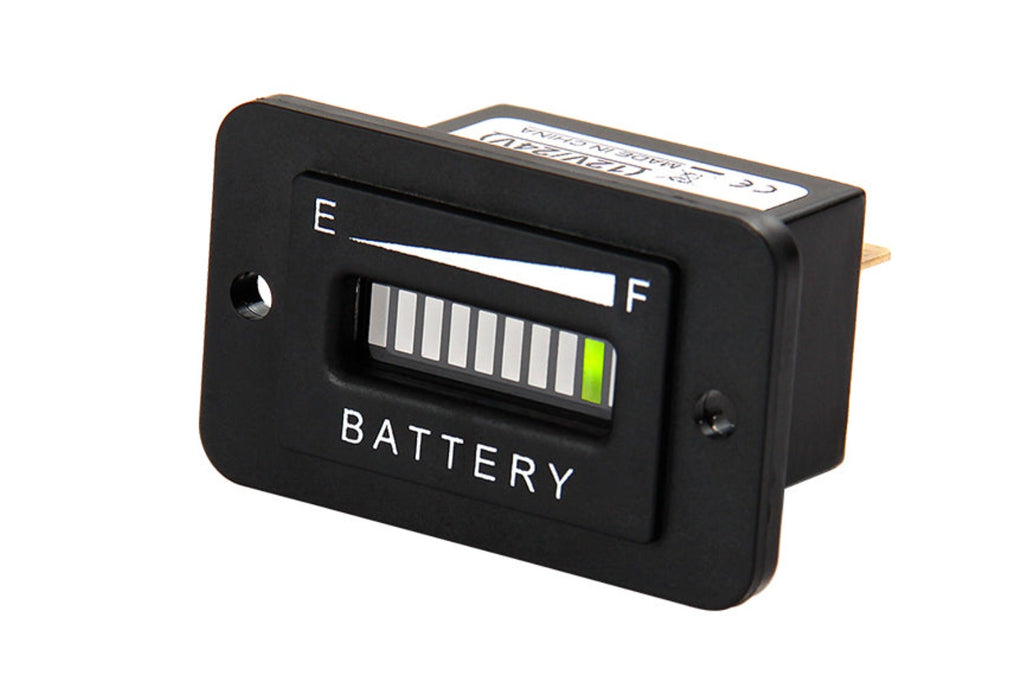

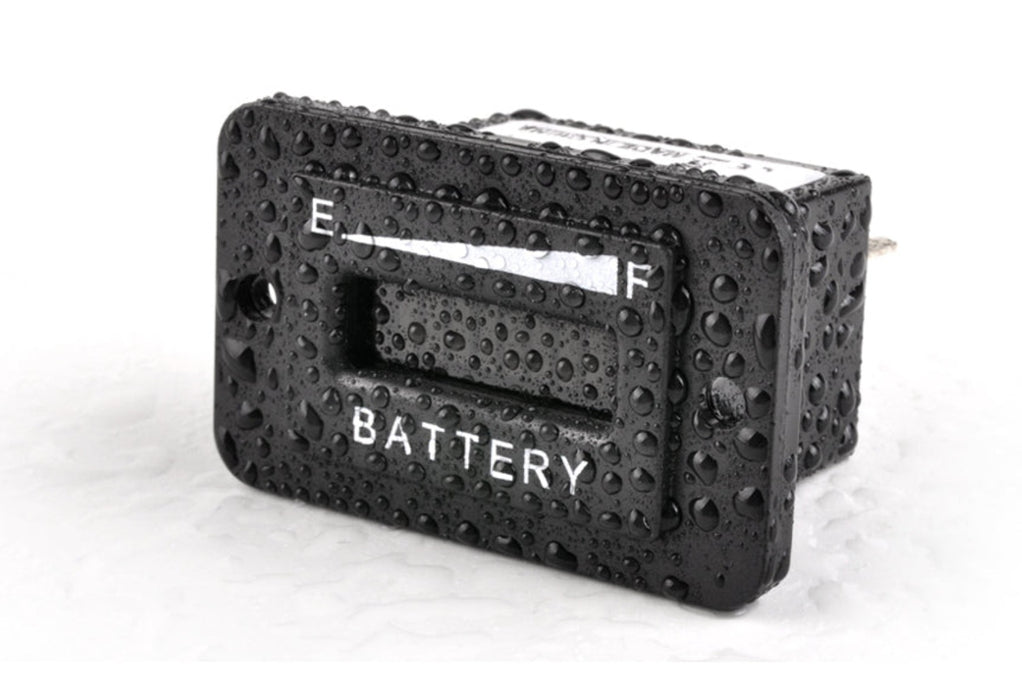

BI-1224V003 is suitable for most lead acid storage batteries, and can also choose different voltage types Multi-color 10-bar LED displays the charging status, and each bar displays 10%. The three-color battery status indicator light displays different power status more intuitively. It also has an excellent surface waterproof design to adapt to the harsh external environment.
| Product Size | 53mm*32mm*24mm |
| System Voltage |
12/24V |
| Operating Current | 20mA |
| Storage Temperature | -40°C to 70°C |
| Package | White Box |
| Package Size | 62mm*51mm*41mm |
| G.W. | 45g |
| Waterproof Rate | IP65 |
| Operation Temperature | -10°C to 50°C |
