Battery Indicator BI-1272V002

$ 33.99

12/24/36/48/72V LED battery indicator for DC powered equipment, such as fork lifts, golf carts, floor care equipment, or any other battery powered equipment.

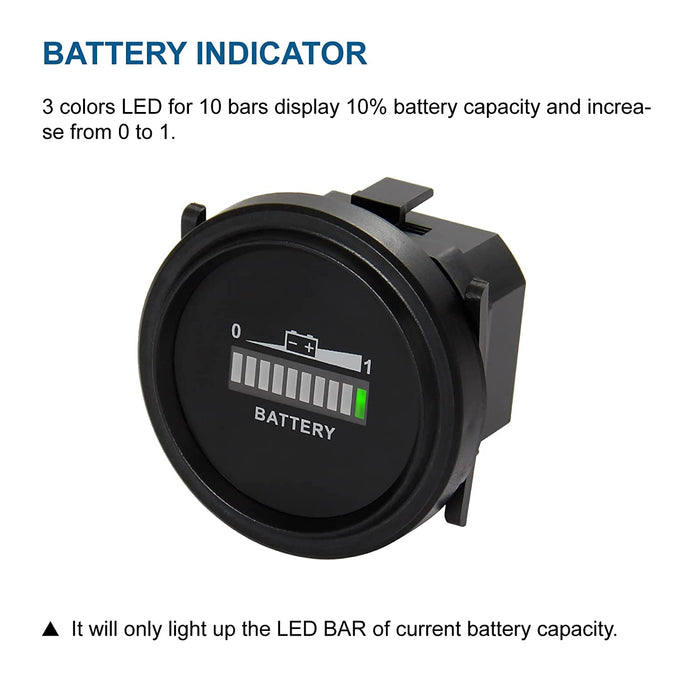

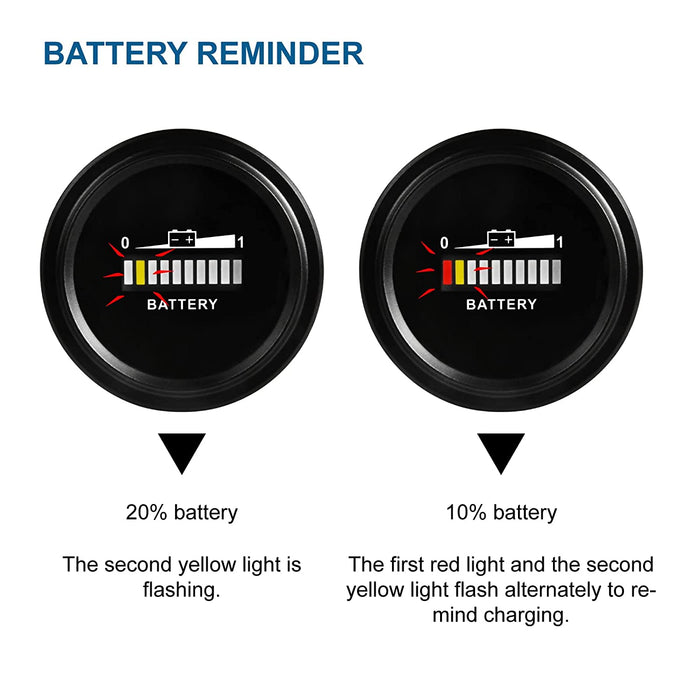

BI-1272V002 is suitable for most lead acid storage batteries, and can also choose different voltage types  Multi-color 10-bar LED displays the charging status, and each bar displays 10%. The three-color battery status indicator light displays different power status more intuitively. It also has an excellent surface waterproof design to adapt to the harsh external environment.

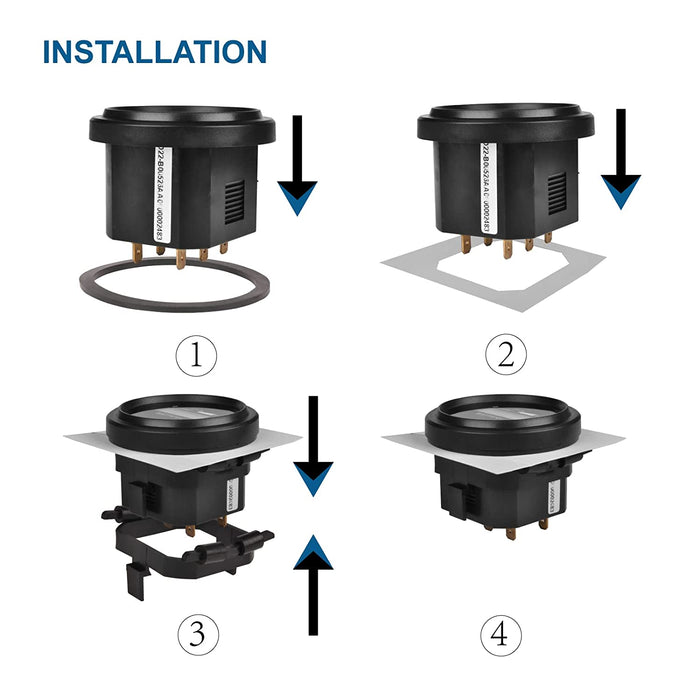

Easy to install! Snap-in design with panel cut-out.

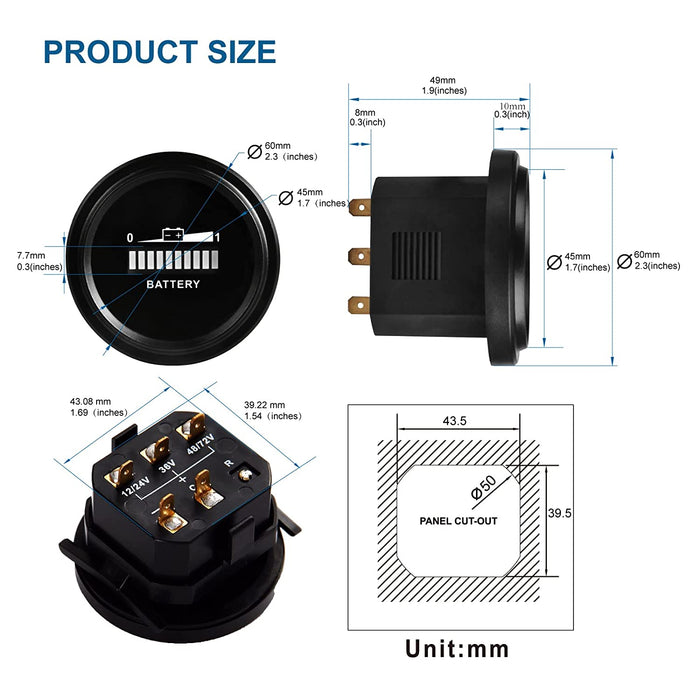

Product Size Φ60mm×49mm
System Voltage
12/24V/36V/48V/72V
Operating Current 20mA
Storage Temperature -40°C to 85°C
Package White Box
Package Size 60mm*60mm*55mm
G.W. 45.9g
Waterproof Rate IP65
Operation Temperature -20°C to 65°C
User manual
