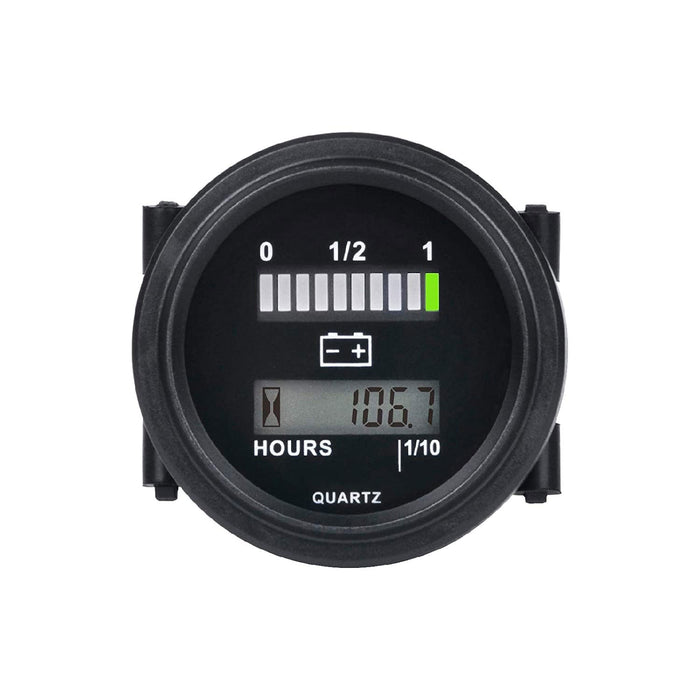

Battery Indicator & Hour Meter BI-1272V004
$ 49.99
12/24/36/48/72V LED battery indicator and hour meter for DC powered equipment, such as fork lifts, golf carts, floor care equipment, or any other battery powered equipment.

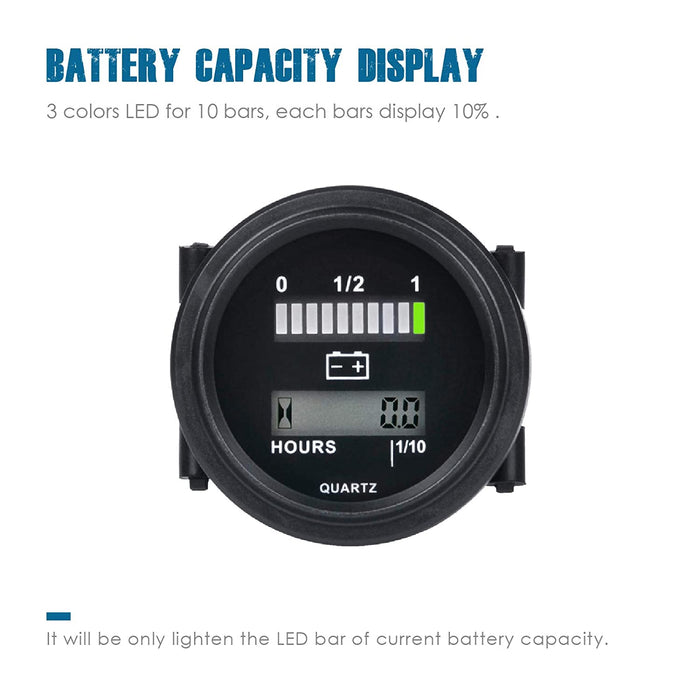

BI-1272V004 is suitable for most lead acid storage batteries, and can also choose different voltage types The 10-column LED bars shows the power status, resolution: 10% for each LED segment. The battery indicator has three colors of battery status indicator light to display different electricity status more intuitively, power-off memory function, and also has an excellent surface waterproof design to adapt to the harsh external environment.

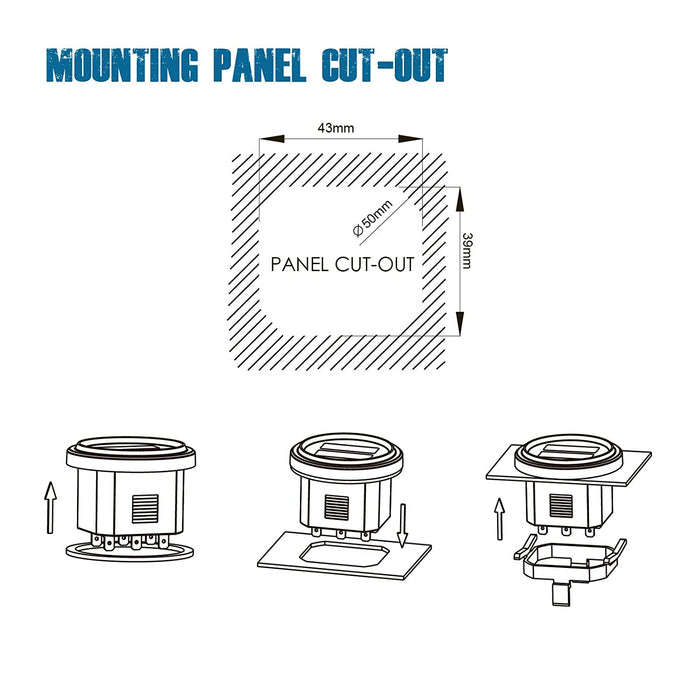

Easy to install! Snap-in design with panel cut-out. Size: ~43×39mm,φ50 (1.69x1.54 inch,φ50).

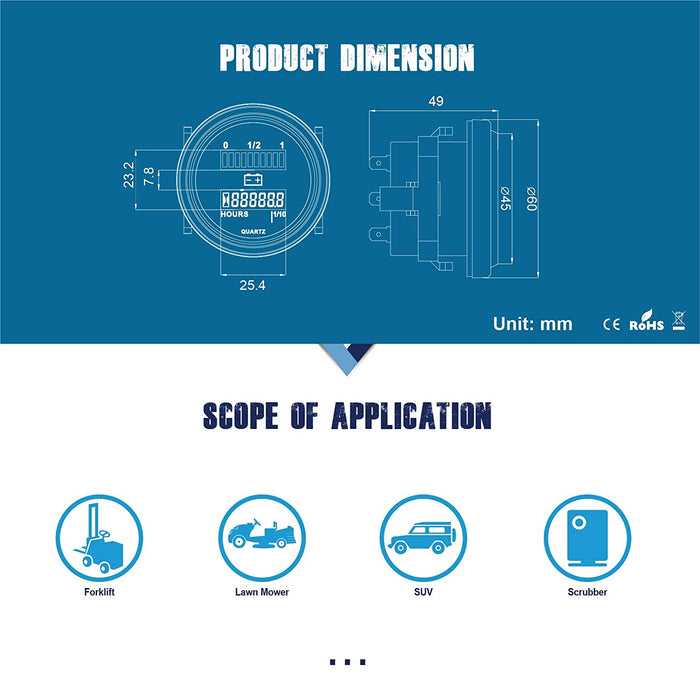

| Product Size | Φ60mm×49mm |

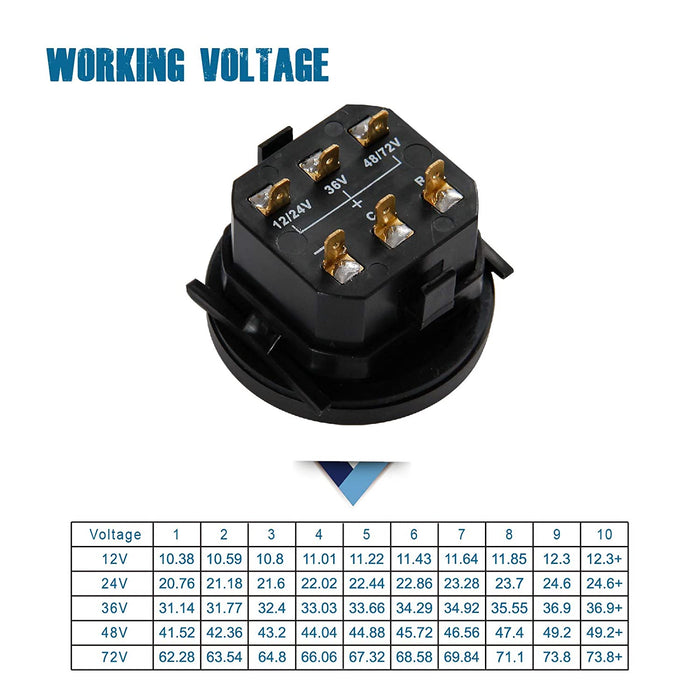

| System Voltage |
12/24V/36V/48V/72V |
| Operating Current | 20mA |
| Storage Temperature | -40°C to 85°C |
| Package | White Box |
| Package Size | 60mm*60mm*55mm |
| G.W. | 70g |
| Waterproof Rate | IP65 |
| Operation Temperature | -20°C to 65°C |
