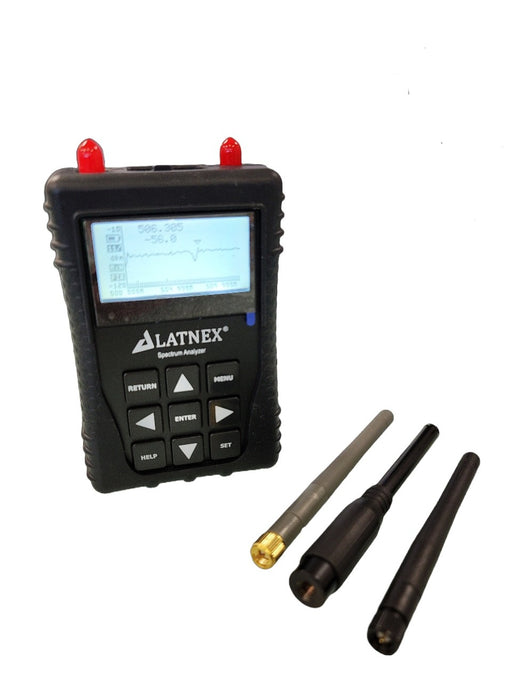

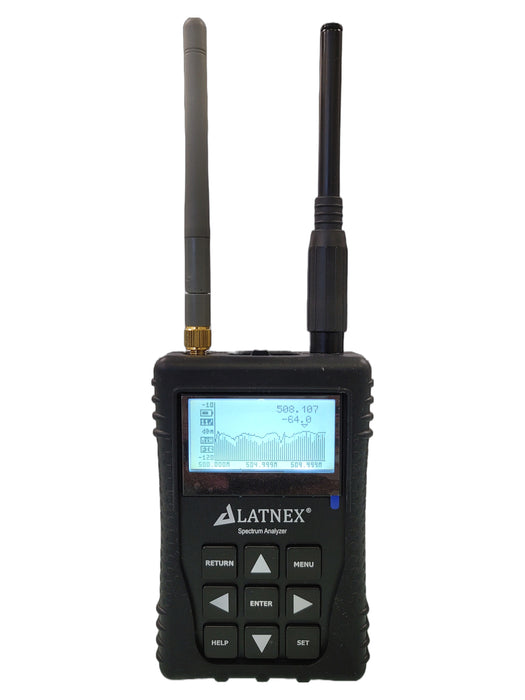

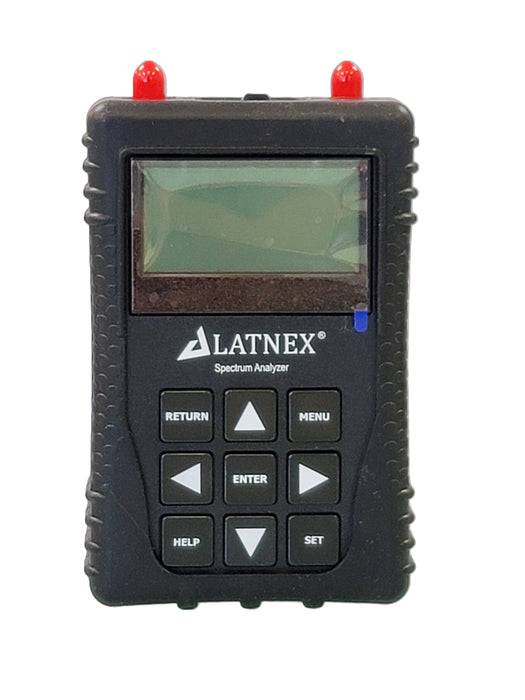

LATNEX® Spectrum Analyzer SPA-7GE (50KHz - 6.1GHz)

$ 663.00 $ 623.00 Save 6%
License: With License RFELIC03 and RFELIC05

The Latnex SPA-7GE is the most powerful Spectrum Analyzer model, covering the full 6GHz range starting at 50KHz up to 6.1GHz with no gaps or limitations, and can be extended up to 7.5GHz with license RFELIC03 and RFELIC05.

When compared to the standard SPA-6G, the new SLIM design offers an outstanding robust enclosure with a strong metallic body and shiny varnished paint, a more convenient USB connector on the side, and a larger internal battery capacity.

Features

  • Internal LNA amplifier and selectable attenuator for additional power range handling.
  • Low-frequency support from 50KHz covering LF, MF, HF, VHF, and UHF
  • High-frequency support covering all ranges up to 6.1GHz with no gaps.
  • New HELP and SET buttons to improve user interface and PRESET configuration selection with 2-clicks
  • Ideal choice for all usable HAM bands.
  • Pocket size and lightweight
  • Solid metal case with high-quality varnished paint
  • Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
  • High capacity internal Lithium battery for 10hs+ of continuous run, rechargeable by USB
  • Multi-platform Windows/Linux/MacOS Open Source software and API libraries

Technical Details



Frequency Band

  • Left connector: 0.05 – 960MHz


  • Right connector: 240 – 6100MHz

Frequency Span

2 – 960MHz in a single sweep

Internal Selectable LNA Gain

25dB

Internal selectable Attenuators

30dB and 60dB

Supporting OS

Windows, Linux and MacOS X

Resolution Bandwidth (RBW)

automatic 2.6Khz to 600Khz

Frequency Resolution

1Khz

Amplitude Stability and Accuracy (typical)

+-3dBm

Amplitude Resolution

0.5dBm

Dynamic Range

-125dBm to 10dBm

Absolute Max Input Power

+30dBm

Average Noise Level (typical LNA)

-125dBm

Wifi Analyzing Range

2.4GHz and 5GHz bands


Antenna Included

  • 2.4/5GHz dual-band antenna

  • UHF 400-900MHz rubber duck articulated antenna

  • Wideband 144/433MHz dual band telescopic antenna

SMA

Standard 50 ohms connectors

Battery

Internal Lithium-Ion 1800mA/h rechargeable battery

Applications

  • RF Spectrum Analysis for FM, TV and DTV, ISM, RFID, GSM, 4G/5G, IoT, GPS, Bluetooth
  • WiFi analysis and fine-tuning
  • Interference hunting
  • EMC pre-testing
  • RF device tuning (with Signal Generator working as Tracking SNA): Check this link for more details

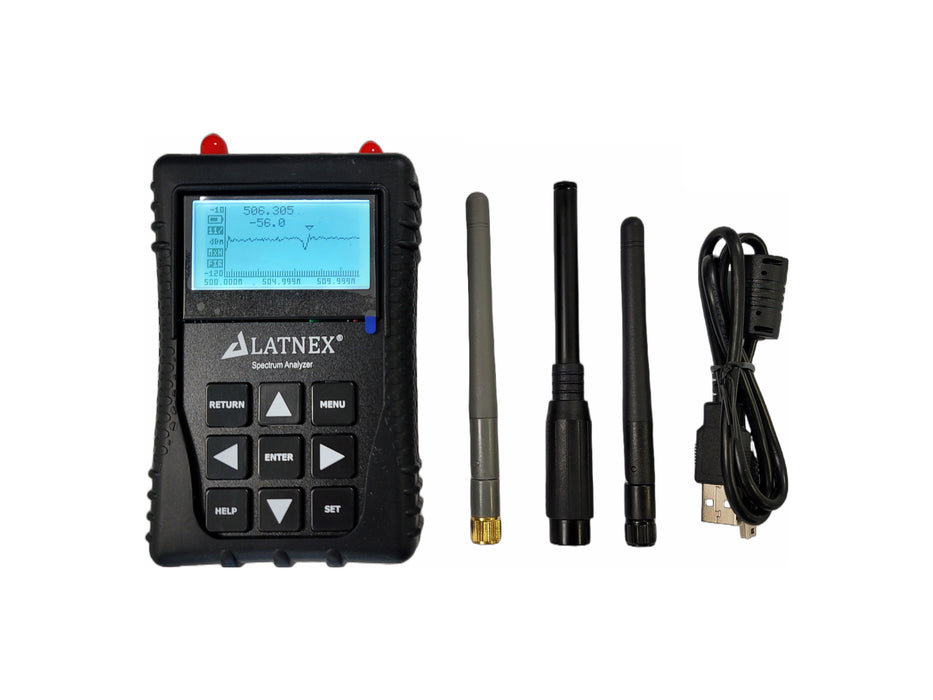

Part List

  • 1 x Spectrum Analyzer
  • 1 x Mini USB cable
  • 1 x Dual band 144/430MHz Telescopic antenna
  • 1 x UHF 400-900Mhz antenna
  • 1 x Dual band 5/2.4GHz antenna

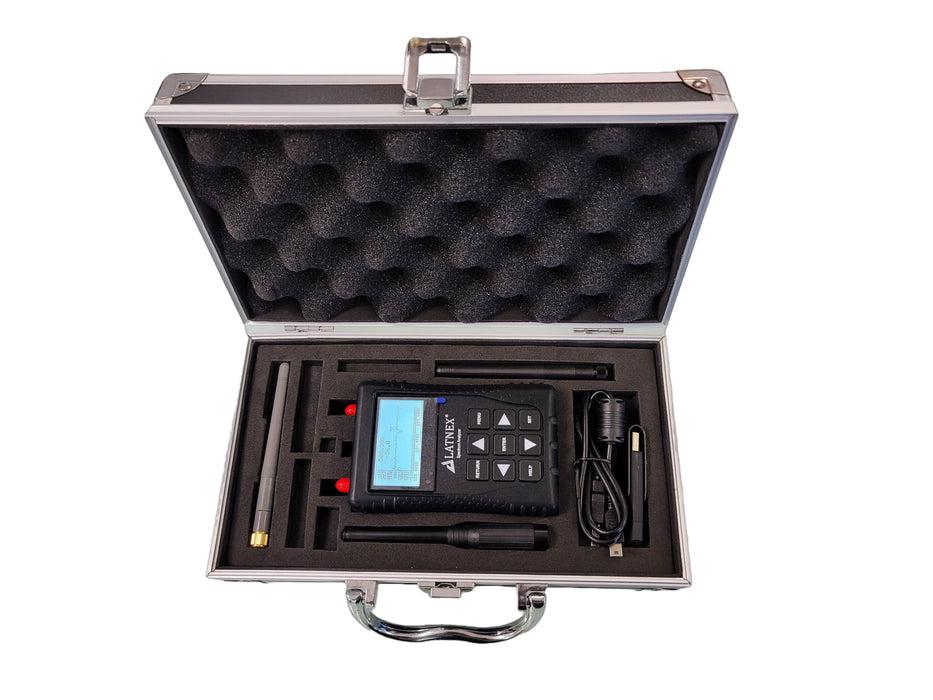

  • 1 x Aluminium Case
