RFELIC05 Extend Range 7.5GHz for SPA-7G and SPA-7GE License

$ 129.00

Wideband License

7500 MHz - Range for SPA-7GE and SPA-7G
3000 MHz - Span range

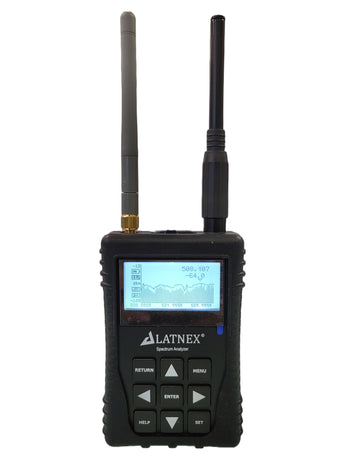

The RF Explorer Spectrum Analyzer PLUS models can optionally extend frequency range for the expansion module, which is the RF SMA connector on the right-side. The left-side RF connector is not affected by wideband license options. Each licenses is permanent, locked to the specific device where it is enabled. These licenses require a Windows, Linux or MacOS computer with internet connection for activation.

Please check below table for more details on supported models and ranges, select the right model for you.

SPA-7GE Standard RFELIC03 RFELIC03 + RFELIC05
Expansion Frequency Range 240MHZ-6100MHz 15MHZ-6100MHz 15MHZ-7500MHz
Expansion Frequency Span up to 960MHz up to 3000MHz
up to 3000MHz
Mainboard Frequency Range 50KHz-960MHz
50KHz-960MHz
50KHz-960MHz
Mainboard Frequency Span up to 960MHz
up to 960MHz
up to 960MHz



SPA-7G Standard RFELIC03 RFELIC03 + RFELIC05
Expansion Frequency Range 15MHZ-6100MHz
15MHZ-6100MHz 15MHZ-7500MHz
Expansion Frequency Span up to 960MHz up to 3000MHz
up to 3000MHz
Mainboard Frequency Range N/A N/A N/A
Mainboard Frequency Span N/A N/A N/A
