Spectrum Analyzer SPA-3G (15MHz - 2700MHz)

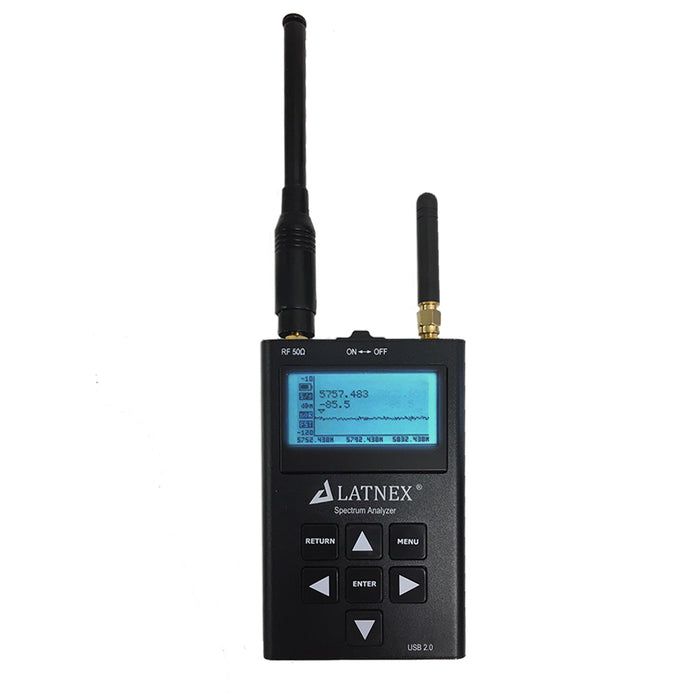

The LATNEX® Spectrum Analyzer is a handheld digital spectrum analyzer, a very affordable tool for work in all popular frequency bands. It is based on a highly integrated frequency synthesizer and double balanced mixer which offers high performance, compact size, low consumption and low cost.
It has been designed to be used equally well outdoor and indoor, and can be connected to a PC for extra functionality using standard mini-USB 2.0 connector.
Pocket size and light weight
Solid aluminum metal case

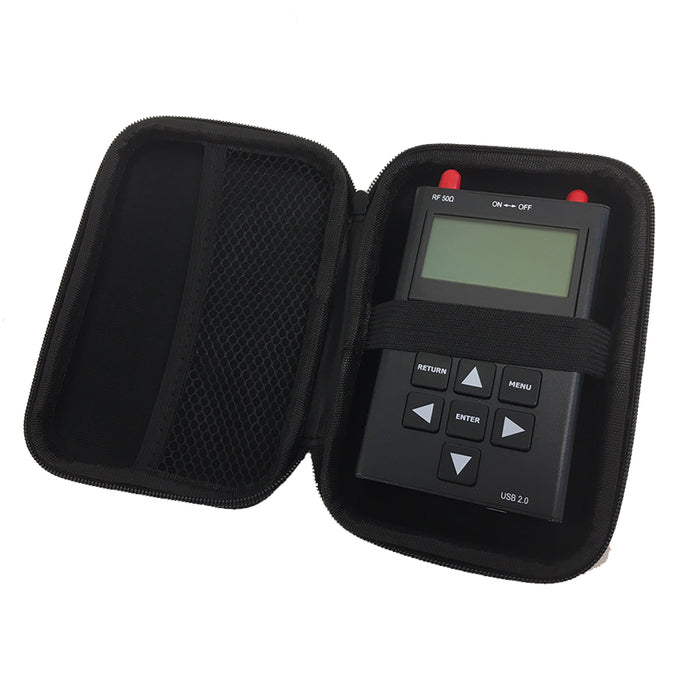

Includes a transport EVA carrying case
Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
Lifetime free firmware upgrades available, open to community requested features
High capacity Lipo for 16hs+ of continuous run, rechargeable by USB
Windows PC client Open Source
Can be extended with internal Expansion Modules for additional band and functionality
Wide band coverage to all popular RF frequencies, starting at 15MHz and going up to 2.7GHz. This include very interesting frequency areas such as 2m HAM radio, all VHF and UHF, FM radio, GPS, WiFi and WiMax, Bluetooth, etc.
Firmware: SPA-3G is delivered with upgraded firmware v1.09. Note some of the features and operation accuracy will be improved in upcoming lifetime free firmware revisions.
Note: This unit does not include RF Generator functionality, only Spectrum Analyzer functionality is available.
|Dimensions||110mm x 70mm x 25mm|
|Battery||Lithium Cells / Batteries contained in equipment UN3481 - PI967|
|Frequency band||15-2700 MHz|
|Frequency span||112KHz - 600MHz|
|Graphics LCD||128x64 pixels, great visibility outdoors|
|PC Windows client||supports Windows XP/Vista/Win7 both 32 and 64bits|
|Backlight||for great indoor visibility|
|2 standard SMA 50 ohms connector,||one for Sub-GHz wideband Nagoya NA-773 telescopic antenna included and another 2.4Ghzone for 15-2700 MHz band with helical antenna included.|
|Left SMA port (WSUB1G)||-115dBm to 0dBm|
|Right SMA port (WSUB3G)||-110dBm to -10dBm|
|Absolute Max input power|
|Left SMA port (WSUB1G)||+5dBm|
|Right SMA port (WSUB3G)||+30dBm|
|Average noise level (typical)||-110dBm|
|Frequency stability and accuracy (typical)||+-10ppm|
|Amplitude stability and accuracy (typical)||+-6dBm|
|Resolution bandwidth (RBW)||automatic 3Khz to 600Khz|
|Spectrum Analyzer SPA-3G||1|
|Nagoya NA-773 wideband telescopic antenna||1|
|2.4GHz band antenna||1|
